AirBagIt DOOR-LAMBO-10 Lambo Doors Actuator Kit Only Remote

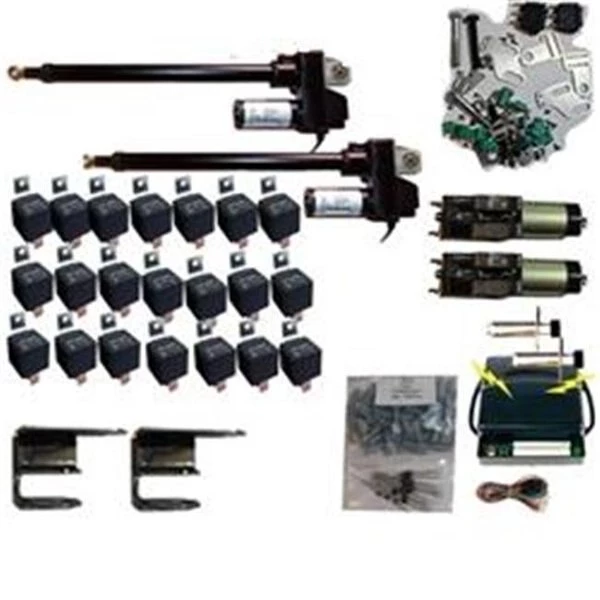

Lambo Doors Actuator Kit Only Remote, 2 Actuators, 2 Solenoid kits, 2 poppers, remote, 4 40 amp relays. Remote Actuators. Doors will remotely pop out & rotate automatically 90 degrees. Do not consider a bolt-on kit because the bolts will !move! and will not line. Item Weight – 25 lbs. Parts Included2x Lambo Door Hinge Assembly.2x Automatic Latch Assembly (A switch assembly inside).2x Shaved Door Kit.2x Linear Actuators.4x Linear Actuators mounting clevis.4x Gas Struts.2x Manual Control Switches.22x 12v relays.110x Relay Connectors.16x Diodes.2x B switch assembly.2x C switch assembly.2x D switch assembly.4x 5;16 Socket Head Cap Screws. Installation InstructionsInstall the Lambo Door Hinge Assembly using the installation instructions that are included with the hinges.Make sure doors open and close smoothly and are free from any binding or rubbing on other parts of the car.Install the Linear Actuator with the door swung open but still in the down position. Extend the linear actuator out 1⁄2 In. from the collapsed position.Install the C switch assembly underneath the linear actuator mounting clevis. Adjust the switch to make contact with the pivot block when the door is in the down position.Install the B switch assembly as shown in the attached diagram. Adjustment of the B switch will be done later.Install the D switch assembly as shown in the attached diagram and adjust the D switch all the way towards the outside of the car.With the door still swung open position the latch assembly behind the hinge as shown in the attached diagram. The two set screws will need to be removed from the hinges to allow the latch to be positioned right. Position the latch release forks underneath the pivot block. The latch pin will need to make contact with the top of the pivot block to prevent the door from swinging close. Apply a
